Single Wire Drawing Line

The small and intermediate single wire drawing machine developed by Dingtian is designed to process copper, aluminum, copper alloy, and silver-plated wire. Depending on the material or finished wire diameter you need, we have a wire drawing machine and even complete wire drawing lines for you to choose from.

Intermediate-wire drawing machine (0.8mm-2.6mm)
Small-wire drawing machines (0.1mm-1.2mm)
Fine-wire drawing machines (0.03mm-0.55mm)

If the products manufactured by the intermediate-wire drawing machines are not thin enough for your needs, we recommend adding our small-wire drawing machine and an annealing machine. Wires processed in this way offer better extension and are less likely to break. The annealing machine is recommended when you need high output and work with a variety of materials. Both the small-wire drawing machines and fine-wire drawing machines can be attached to annealing machines. Dingtian provides integrated production services by offering annealing solutions that best fit your individual situation.

Advantages
  • Every one of our wire drawing machines is dual frequency conversion and without tension rod. One frequency converter controls the wire drawing, the other controls the winding process. Because of this, the equipment can provide you with thinner drawing lines featuring better stability and minimize the chance of wire breakage.
  • Spooling device installed by plugging-in, available for take-up bobbins with different diameters, bobbin fixed on the axis by a pin, which grants better stability.
  • The wire drawing line allows for multiple traversing methods, such as I-shaped, cone-shaped, etc. Optical fiber measurement device is equipped for take-up bobbin length and weight measurement, to achieve automatic traversing.
  • Additional spray lubrication available
  • Excellent wire surface quality
  • Compact design
  • Great energy savings

    • If you are interested in one of the following models, simply place an order, otherwise we can work with you to satisfy your requirements.

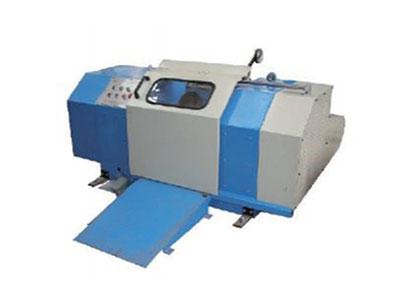

    1. LHST280-21 Wire Drawing Line Equipped with Continuous AnnealersLHST280-21
      1. Wire Drawing Line
      2. Number of Drawing Dies: up to 21
      3. Inlet Wire Diameter: 2.6mm - 3.0 mm
      4. Finished Wire Diameter: 0.5 mm - 1.2mm
      5. Drawing Cone: 4

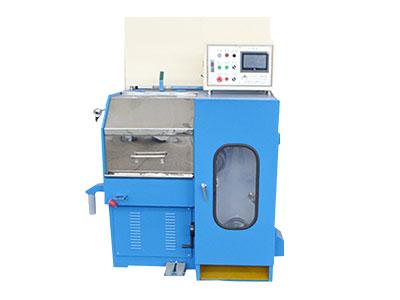

    1. LHS220-24B Intermediate Wire Drawing MachineLHS220-24B
      1. Intermediate Wire Drawing Machine
      2. Number of Drawing Dies: up to 24
      3. Inlet Wire Diameter: 0.55mm - 1.2 mm
      4. Finished Wire Diameter: 0.10 mm - 0.40mm
      5. Drawing Cone: 4
    1. LHS220-24 Auto Fine Wire Drawing Machine and Dies LHS220-24
      1. Auto Fine Wire Drawing Machine and Dies
      2. Number of Drawing Dies: up to 24
      3. Inlet Wire Diameter: 0.55mm - 1.2 mm
      4. Finished Wire Diameter: 0.10 mm - 0.40mm
      5. Drawing Cone: 4
    1. LHST195-24 Fine Wire Drawing Machine with AnnealersLHST195-24
      1. Fine Wire Drawing Machine with Annealer
      2. Number of Drawing Dies: up to 24
      3. Inlet Wire Diameter: 0.6mm - 1.2 mm
      4. Finished Wire Diameter: 0.10 mm - 0.32mm
      5. Drawing Cone: 4

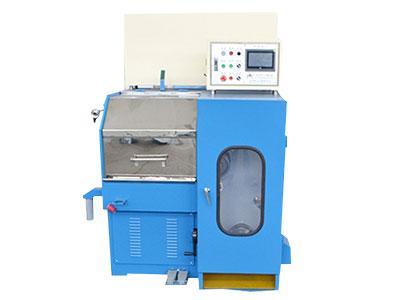

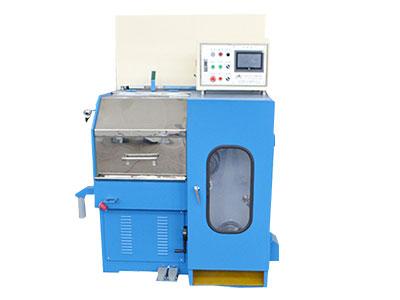

    1. LHS150-24B Automatic Fine Wire Drawing MachineLHS150-24B
      1. Automatic Fine Wire Drawing Machine
      2. Number of Drawing Dies: up to 24
      3. Inlet Wire Diameter: 0.40 mm - 0.80 mm
      4. Finished Wire Diameter: 0.05 mm - 0.20 mm
      5. Drawing Cone: 4

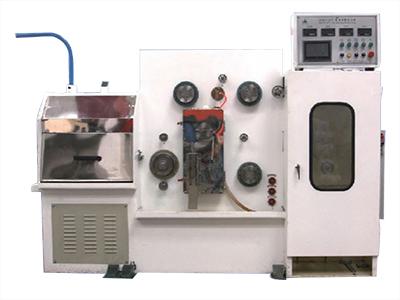

    1. LHST150-24 Fine Wire Drawing Line Equipped with AnnealersLHST150-24
      1. Fine Wire Drawing Machine with Dies
      2. Number of Drawing Dies: up to 24
      3. Inlet Wire Diameter: 0.23 mm - 0.55 mm
      4. Finished Wire Diameter: 0.05 mm - 0.12 mm
      5. Drawing Cone: 4
    1. LHS150-24 Automatic Fine Wire Drawing MachineLHS150-24
      1. Automatic Fine Wire Drawing Machine
      2. Number of Drawing Dies: up to 24
      3. Inlet Wire Diameter: 0.12-0.55mm
      4. Finished Wire Diameter: 0.030-φ0.12mm
      5. Drawing Cone: 4

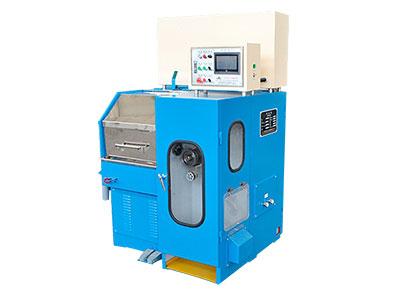

    1. LHS120-24 Fine Wire Drawing MachineLHS120-24
      1. Fine Wire Drawing Machine
      2. Number of Drawing Dies: up to 24
      3. Inlet Wire Diameter: 0.215mm - 0.07 mm
      4. Finished Wire Diameter: 0.06 mm - 0.025mm
      5. Drawing Cone: 4

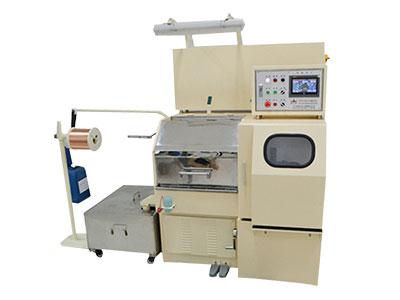

    1. SPS100-24 Fine Wire Drawing MachineSPS100-24
      1. Fine Wire Drawing Machine
      2. Number of Drawing Dies: up to 24
      3. Inlet Wire Diameter: 0.055-0.120mm
      4. Finished Wire Diameter: 0.022-0.040mm
      5. Drawing Cone: 4

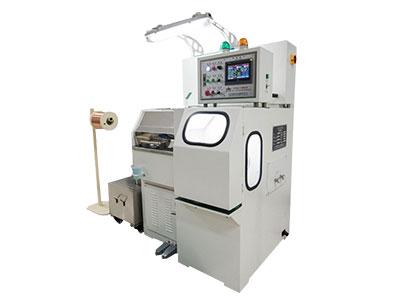

    1. SPS85-15 Fine Wire Drawing Machine SPS85-15
      1. Fine Wire Drawing Machine
      2. Number of Drawing Dies: up to 15
      3. Inlet Wire Diameter: 0.025 mm - 0.050 mm
      4. Finished Wire Diameter: 0.016 mm - 0.030 mm
      5. Drawing Cone: 2

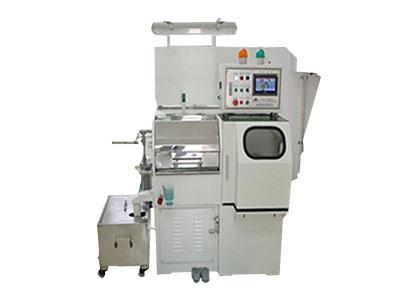

    1. SPS60-12 Fine Wire Drawing MachineSPS60-12
      1. Fine Wire Drawing Machine
      2. Number of Drawing Dies: up to 12
      3. Inlet Wire Diameter: 0.018mm - 0.038 mm
      4. Finished Wire Diameter: 0.012 mm - 0.025mm
      5. Drawing Cone: 2

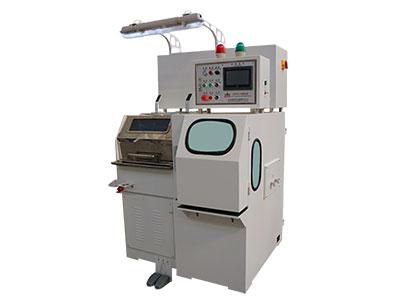

    1. QSF45-10 Superfine Wire Drawing MachineQSF45-10
      1. Superfine Wire Drawing Machine
      2. Number of Drawing Dies: up to 10
      3. Inlet Wire Diameter: 0.0112mm - 0.0174 mm
      4. Finished Wire Diameter: 0.0085 mm - 0.013mm
      5. Drawing Cone: 2

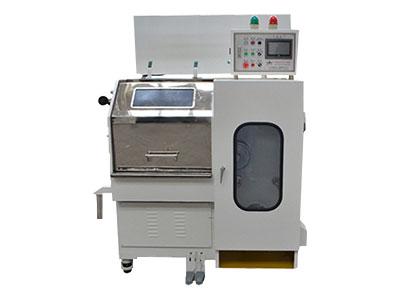

Wire Drawing Line Customization for Special Materials Besides products listed above, we also provide wire drawing line customization service, which is more needed if you want precious metal wire drawing devices.
