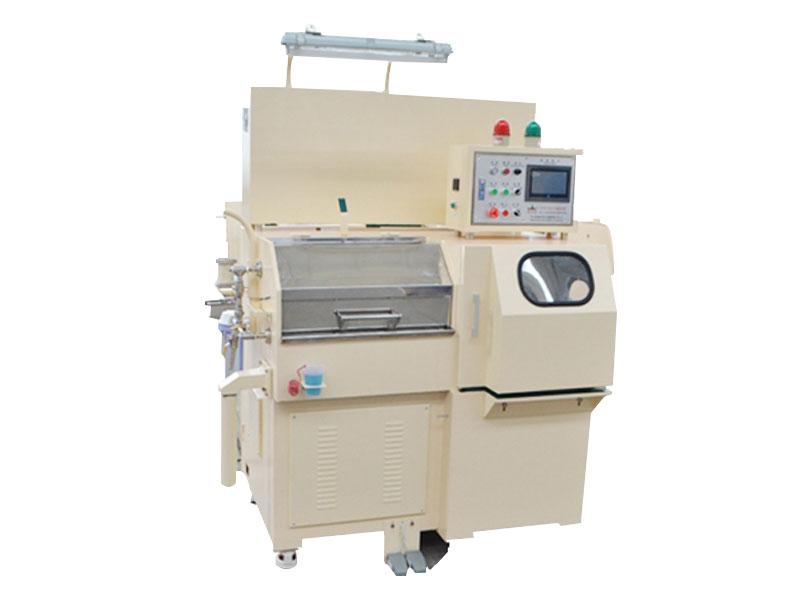

SPS120-13 Wire Drawing Machine for Platinum
The SPS120-13 wire drawing machine for platinum was specially designed for Sino-Platinum Metals Co., Ltd. This equipment uses a 4 pole motor instead of a 2 pole, because a high torque motor is needed to perform a powerful drawing process, due to platinum’s high tensile strength.
| Model | Data |
| Inlet Wire Diameter | φ0.35mm—φ0.076mm |
| Finished Wire Diameter | φ0.179mm—φ0.04mm |
| Drawing speed max | 650m/min |
| Number of Drawing Dies | 13 (1+11+1) |
| Die elongation | 7%-8% |
| Drawing Cone Diameter | φ120 |
| Total Power | 4kW, Y2-112M-4 |
| Winding-up Motor Power | 1.1kW, HSB60A-06-1.1F |
| line arrangement Motor | Servo motor 0.4kW, 40B-30CB |
| Water Pump Motor Power | 90W MP -55R |
| Lighting | 220V 40W, 220v 7w-11W |
| Brake Power | 24V 22W |
| Lubrication Method | Lubricant spraying (flat fan) |
| Machine Dimension | 1910×1010×1730 (mm)(L×W×H) |
| Machine Weight | 1.1t |
| Take-up Bobbin Dimension | φ110×72×φ100×68×φ15.5 (aluminum bobbin) φ88×52×φ80×50×φ78 (steel bobbin) |
Send an Inquiry
If you are interested in this product, feel free to contact us anytime!
The SPS120-13 Wire Drawing Machine for Platinum is our standard type, We also provide customization services tailored to your wire drawing needs. For example, specifications (number of dies, lubricant formula, case material, outlet die angle adjustable range, etc. )can be adjusted according to metal materials with different physical properties.
