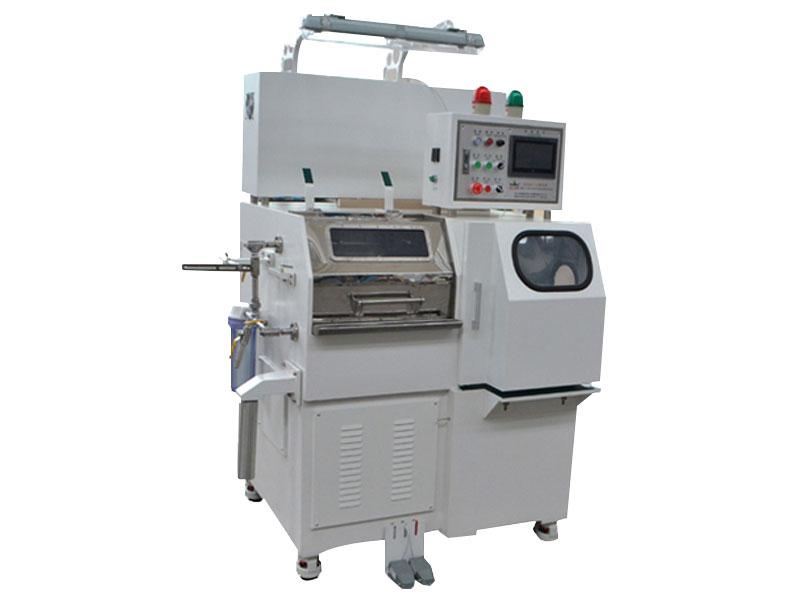

SPS60-12 Wire Drawing Machine for Stainless Steel
The SPS60-12 wire drawing machine was customized for an Indian customer, and is specially optimized for stainless steel wire drawing. An adjustable shelf for the outlet die is installed, allowing for an adjustable outlet die angle for a better stainless steel wire drawing performance.
| Model | Data |
| Inlet Wire Diameter | φ0.018mm—φ0.038mm |
| Finished Wire Diameter | φ0.014mm—φ0.025mm |
| Drawing speed max | 1200m/min |
| Number of Drawing Dies | 12 (11+1) |
| Die elongation | 5%-6% |
| Drawing Cone Diameter | φ60 |
| Total Power | 2.2kW, Y2-90L-2 |
| Winding-up Motor Power | 0.55kW, HSB40C-12-0.55 |
| line arrangement Motor | Servo motor 0.4KW, 40B-30CB |
| Water Pump Motor Power | 90W MP-55R |
| Lighting | 220V40W, 220V7W-11W |
| Brake Power | 24V22W |
| line arrangement | Ball screw driven by servo motor to rotate take-up axis |
| Lubrication Method | Lubricant spraying (flat fan) |
| Machine Dimension | 1450×1020×1580mm (L×W×H) |
| Machine Weight | 1.0t |
| Take-up Bobbin Dimension | φ135×170×φ110×150×φ80 (steel bobbin) φ110×72×φ100×68×φ15.5 (aluminum bobbin) φ88×52×φ80×50×φ78 (aluminum bobbin) |
Send an Inquiry
If you are interested in this product, feel free to contact us anytime!
The SPS60-12 Wire Drawing Machine for Stainless Steel is our standard type, We also provide customization services tailored to your wire drawing needs. For example, specifications (number of dies, lubricant formula, case material, outlet die angle adjustable range, etc. )can be adjusted according to metal materials with different physical properties.
